Automated Storage and Retrieval Systems

Storage solutions designed for automated storage and retrieval of palletized goods. Pallets are heavy and energy intensive to store and retrieve. Warehouses storing pallets need automated solutions that maximize throughput and storage density, while at the same time reducing energy consumption and cost. We at Craftsman deliver tailored automated retrieval solutions around your business storage needs

Miniload Shuttle

---

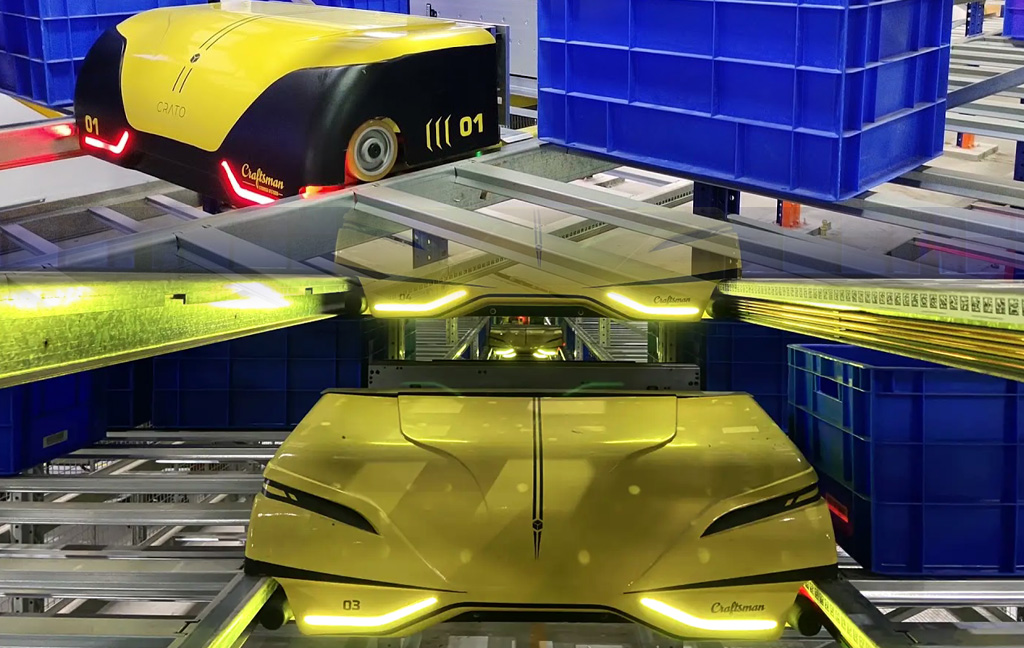

Mini-Load Shuttle ASRS system is a high throughput automated storage and retrieval system for bins, totes, and cartons. Mini-Load Shuttle ASRS systems are designed with faster performance and operational efficiency, resulting in higher productivity. Craftsman’s Crato, A single-level miniload shuttle system provides optimum space utilization with high throughput capabilities

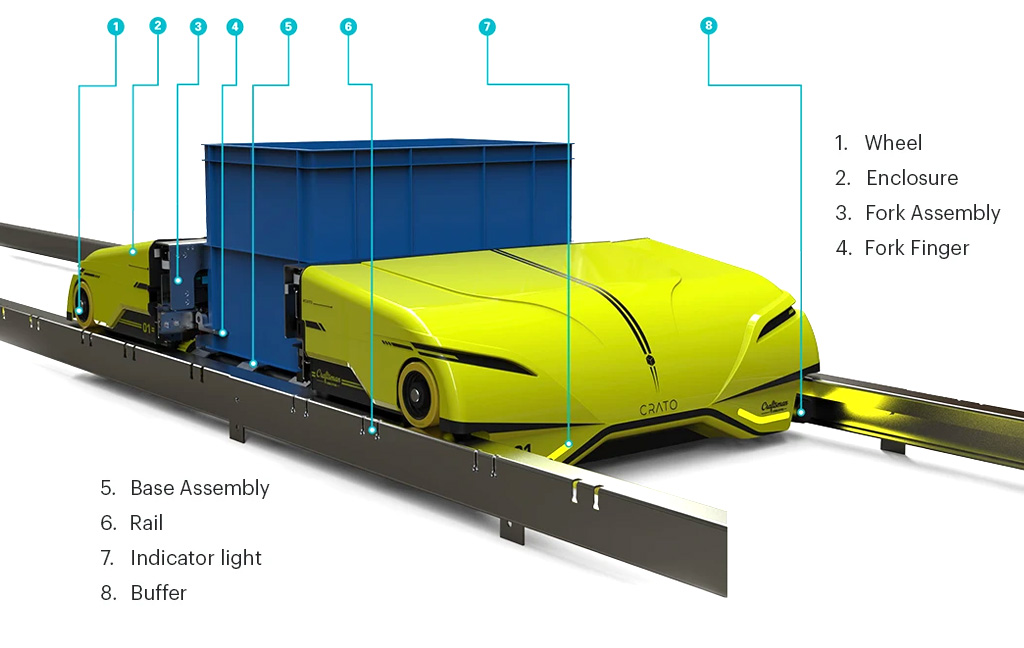

Crato is fitted with telescopic forks for storage and retrieval designed to handle Totes of sizes from 300mmx400mm up to 600mm x 400 mm. Weights up to 50 kg per tote can be handled efficiently and reliably by Crato

Combining Crato shuttles with Craftsman’s innovative Mini-load lift, throughputs of up to 400 totes per hour per lift can be achieved

Multiple systems can be stacked together for even higher throughputs

Double deep storage for maximum storage density

Modular design for scalability

Controlled Inventory

Cold storage option

Advantages

• High speeds can be achieved
• High throughput
• Maximum space utilization
• Customized to material size
• Aesthetic design
• Safety light indicators
